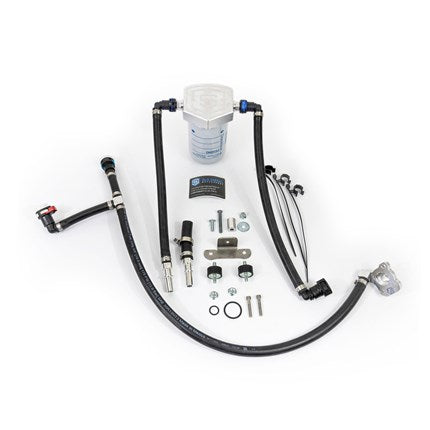

S&S Gen2.1 CP4 Disaster Prevention Kit - 11-25 Ford 6.7L

Owners of 2011–2025 Ford 6.7L Power Stroke engines are advised to install the S&S Diesel Motorsport Gen2.1 CP4 Disaster Prevention Kit to mitigate the risks associated with the factory-installed Bosch CP4 high-pressure fuel pump. The CP4 pump is known for potential failures that can introduce metal debris into the fuel system, leading to extensive damage to injectors, fuel rails, lines, and the fuel tank. The Gen2.1 kit addresses this by rerouting the pump's fuel return through a dedicated filter, effectively capturing any debris before it can contaminate the broader fuel system. This design not only safeguards critical components but also simplifies installation with OE-style quick-connect fittings, eliminating the need for cutting factory lines. By proactively installing this kit, truck owners can prevent costly repairs and ensure the longevity and reliability of their vehicle's fuel system.

S&S Gen2.1 Disaster Prevention Kit Features:

• New and improved Gen2.1 Disaster Prevention Kit
• Safeguards fuel injectors, rails, lines, and tank from CP4 debris
• Thoroughly validated and proven to work in real-world testing
• All OE-style quick connects (easy install)
• Fuel supply split-off 25 inches away from the CP4 pump
• Return filter isolates CP4 debris before it goes on to the tank
• Gen2.1 billet filter head accepts standard spin-on fuel filters
• Comes with Donaldson P550943 fuel filter (9-micron at 99% efficiency)
• One part number fits all years (2011-2025)

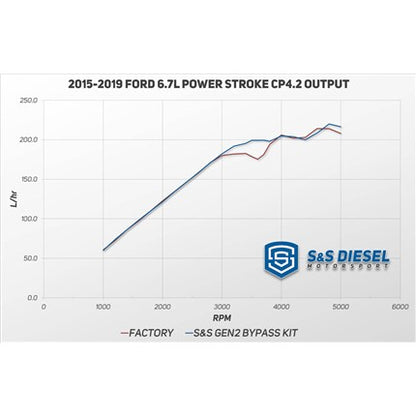

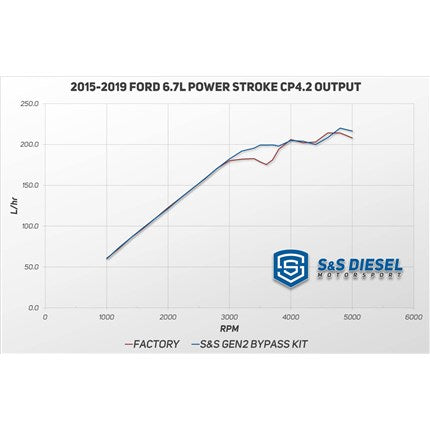

• Improves CP4 output past 3,000 RPM (see data below)
• Can extend the range of a truck during a CP4 failure
• CARB Compliant (EO# D-756-6)
